Our connector has been designed for square tubes. It has a 135º angle.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

THCLU
THCLU

Reference
For Tube
Tube Thickness
L
Angle (A)
Nut Spot (SW) / Metric (M)



More
Info.
02300400177 25 x 25 1,50 57,00 120º SW 13
02300400178 25 x 25 1,50 55,00 135º SW 13

If you are interested in our family THCLU, you may be interested in these families as well:

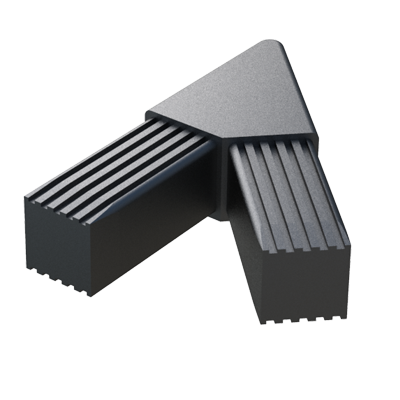

Our connector has been designed to connect 2 square tubes. It has a 135º angle.   Our connector has been designed for square tubes. It has a 45º angle.   The THCLP <b>articulated</b> connector has been designed to connect <b>2 square tubes</b>. The <b>articulation range</b>, as well as the type of rotation and locking, vary between each reference and can be consulted in the <b>'Angle' column</b>. <br> The <b>Nylon</b> (PA6) used is highly resistant and is characterized by a very long life and great resistance to aging. According to the reference, they have a <b>fiberglass reinforcement</b> which provides greater rigidity, dimensional and thermal stability. <br><br> * <i><b>Type 1</b></i>: Free rotation movement. <br> * <i><b>Type 2</b></i>: Rotation movement with 15º internal teeth. <br> * <i><b>Type 3</b></i>: Rotational movement with internal stop at 0º, 90º, 180º positions. <br> * <i><b>Type 4</b></i>: Rotational movement with a stop at 180º. <br><br> Please consult our sales office if the measurement or any other product specification is not within our standard program.<br>   Our connector has been designed for square tubes. It has a 135º angle.
