Our elbow connector has been designed for square tubes. It is supplied with the internal core in steel.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
For Tube
Tube Thickness
L
H
Metric (M)



More
Info.
02300400159 25 x 25 1,50 52,00 25,00 M8

If you are interested in our family THCLI, you may be interested in these families as well:

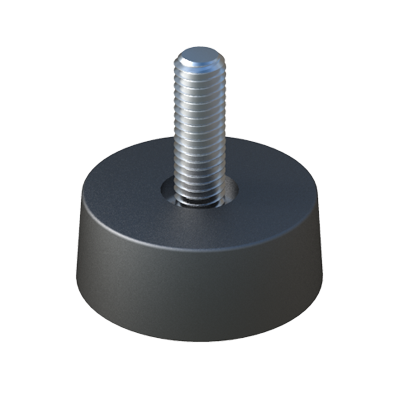

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   Our LKKG leveling foot is designed for use with machinery. Maximum load depends on reference.   Our round adjustable foot has a steel cover. If you need it with an hexagonal nut for an easier assembly, see our family LHDE. If you want the part with movement or tilting, please visit our family MFDD.   Our elbow connector has been designed for square tubes. It is supplied without internal metal core.
