2 tubes straight connector with a cavity for metal core and visible union - ISC Plastic Parts

Our straight connector has been designed for rectangular tubes. It is supplied with or without internal metal core.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube	Tube Thickness	L	H									More Info.

02300400131	20 x 15	1,50	37,00	5,00
02300400129	25 x 20	1,50	37,00	5,00
02300400139	30 x 15	1,50	35,50	5,00
02300400002	30 x 20	1,50	37,00	5,00
02300400138	30 x 20	2,00	40,00	3,00
02300400136	40 x 20	1,50	36,00	5,00
02300400258	40 x 20	2,00	50,00	5,00
02300400134	50 x 20	2,00	40,00	5,00
02300400135	50 x 30	2,00	49,00	5,00
02300400137	60 x 20	2,00	40,00	5,00
02300400130	60 x 30	2,00	34,00	5,00
02300400132	60 x 40	1,50	48,00	5,00
02300400133	60 x 40	2,00	48,00	5,00
02300900002	80 x 40	3,00	48,00	5,00

If you are interested in our family SAIAA, you may be interested in these families as well:

Our elbow connector has been designed in order to connect 2 rectangular tubes. This connector has a small rounded external part which gives a good finish.

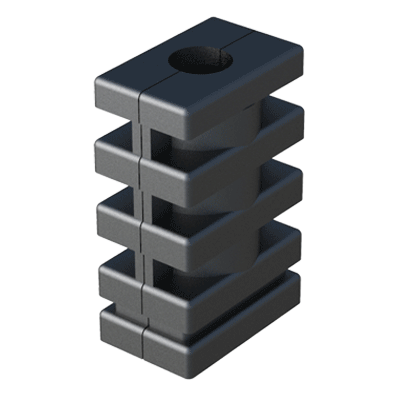

Our connector for rectangular tubes has been designed with 2 cavities for hexagonal nuts. We can supply the part without nuts, or with a nut up, or one nut down, or with the 2 nuts. Please consult us.
