Our adjustable foot has been designed to be at the same time a tube insert as well as an adjustable height.

Material:  ABS
Standard colors: Black - Grey
Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (D)
Tube Thickness (G)
Maximum thread height (L1)
SW
H
Suitable for Range

PDF
3D IGS
Add
02500100301 50 1,50 0 to 120 53,00 5,00 AKEAA
02500100302 50 1,50 0 to 170 53,00 5,00 AKEAA
02500100303 53 3,00 0 to 20 53,00 7,00
02500100304 60 1,50 0 to 120 63,00 5,00 AKEAA
02500100305 60 1,50 0 to 170 63,00 5,00 AKEAA
02500100306 63 3,00 0 to 20 63,00 7,00

If you are interested in our family AKEAC, you may be interested in these families as well:

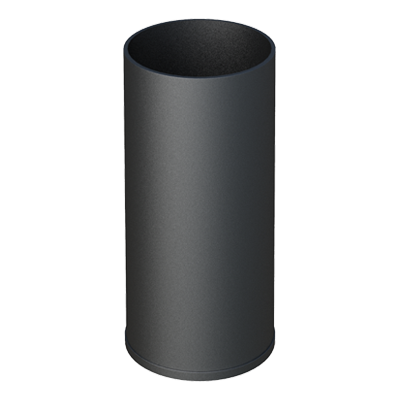

Our trimming cover for round tubes has been designed to suit our family AKEAC.
