The MAYE toothed clamp features an additional gripping ring that provides extra hold, ensuring greater assembly stability even in environments with vibrations or movement. This feature also makes it ideal for pre-assembly tasks, allowing temporary fixing of cables, tubes or hoses before final installation.
It can be installed manually thanks to its ergonomic design, although the use of pliers or specific tools is recommended to ensure a tighter and more secure fit. One of its key advantages is its release system, which allows the clamp to be opened and reused easily, optimizing material use and reducing waste.
Made of high-quality polyamide 66 (PA66), the MAYE clamp is rated UL94-HB for flammability and offers excellent thermal resistance, with an operating temperature of up to +105 °C. Its durability and versatility make it a reliable solution for electrical, industrial or maintenance applications.

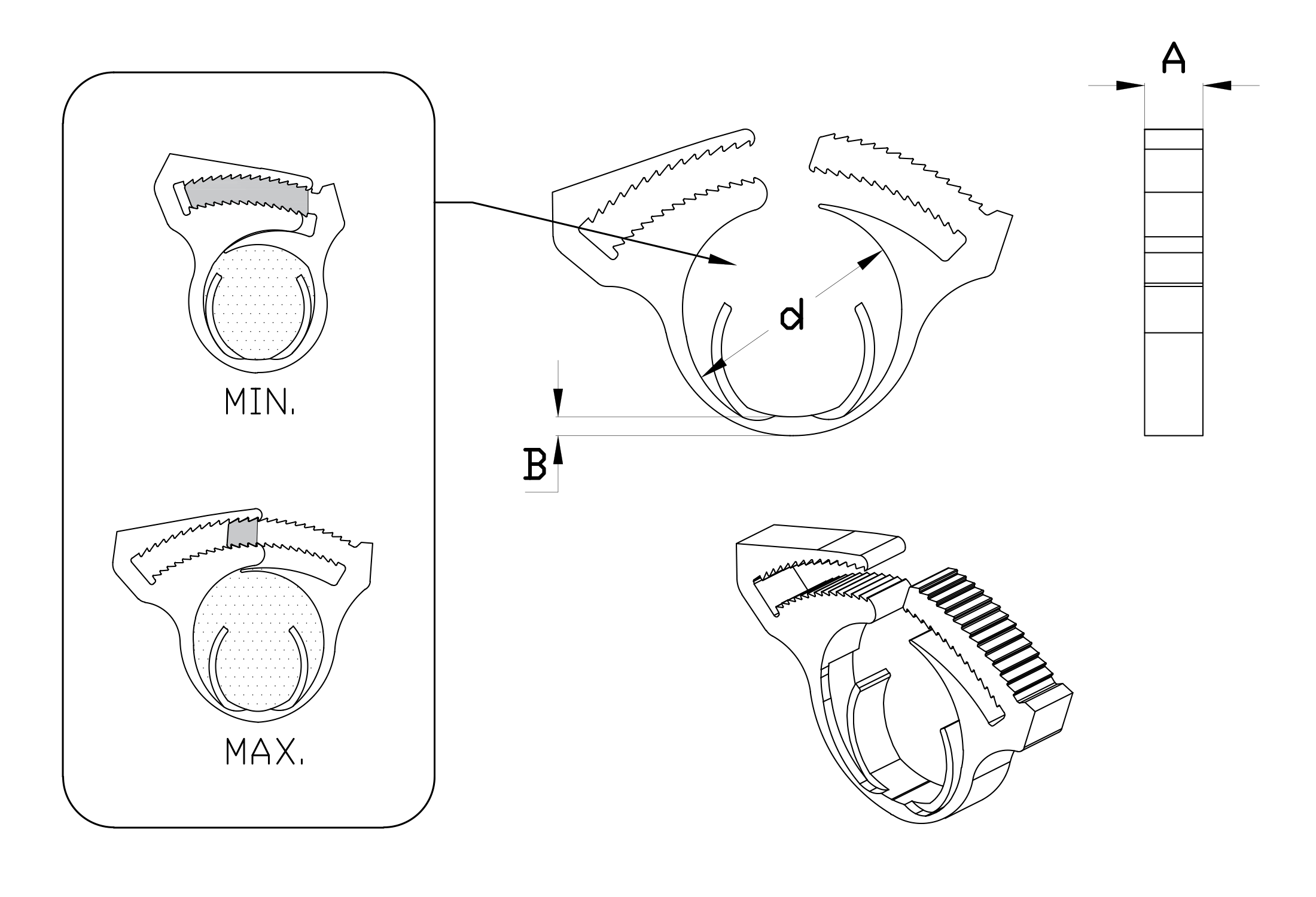

Drawing PDF:
UL94:   HB
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Cable Range minimum/maximum (d)
A
B
Maximum pressure resistance (Mpa)



More
Info.
02012000095 8,70 / 10,30 6,40 2,00 1,38
02012000096 13,50 / 15,10 6,40 2,00 1,38
02012000097 17,00 / 20,60 6,40 2,00 1,38
