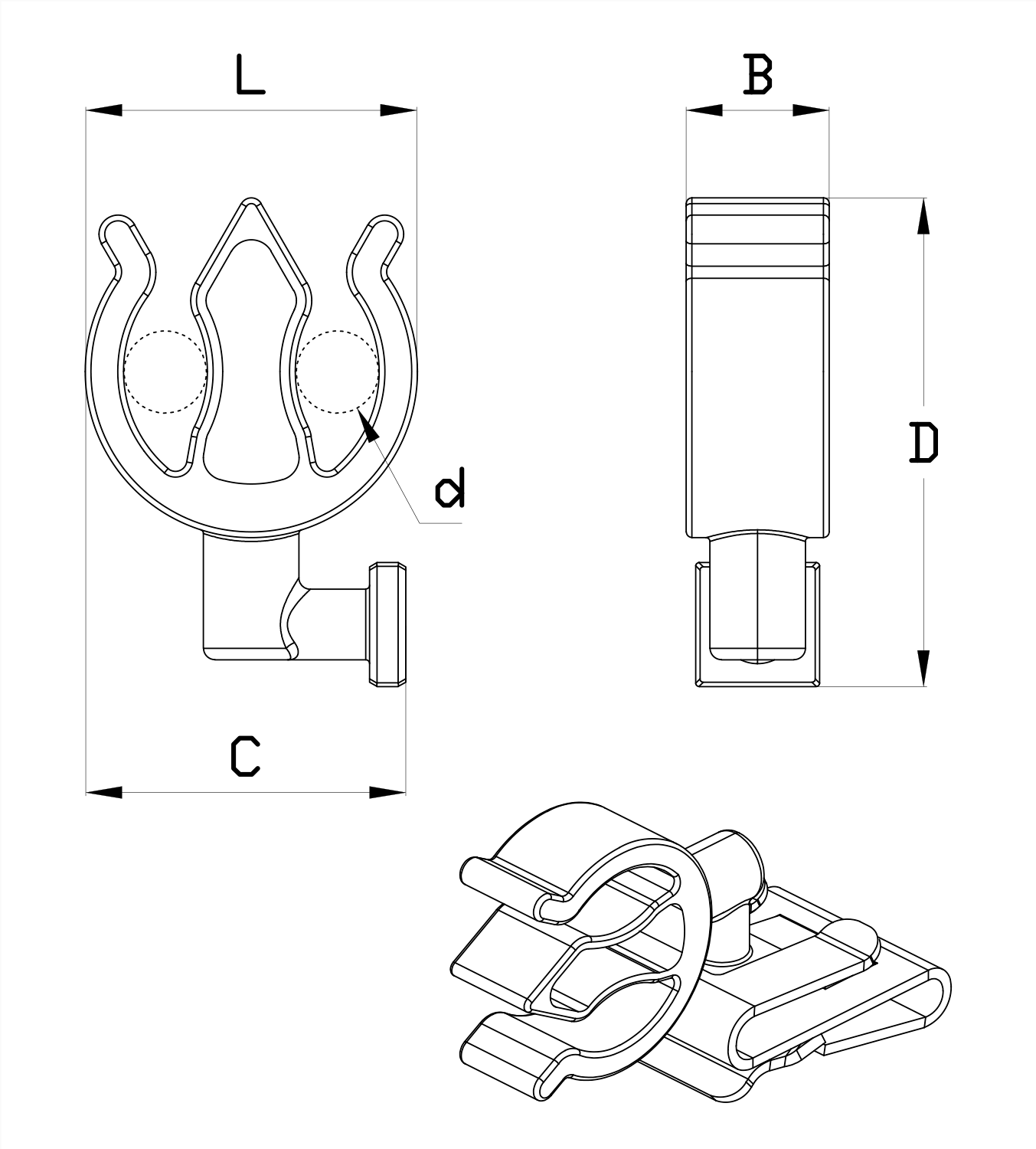

The SFT 90° modular clamp is designed for the fastening and guiding of two homogeneous cables in a perpendicular orientation, providing a safe, practical and durable solution for cable management in industrial and renewable energy environments. It is intended to be assembled with the SFK panel edge clips or with the SFO structural profile clips, ensuring compatibility and versatility in assembly.
Manufactured in stabilized Polyamide 66, it offers excellent heat and UV resistance, complies with UL94-V2 flammability classification, and withstands a temperature range of -40 °C to +105 °C. These properties guarantee reliable performance and long service life, even in outdoor installations such as photovoltaic plants.
Its square base allows easy fixing onto the corresponding stainless steel clips, orienting the cables perpendicular to the structure. Thanks to its tree-shaped design, it can accommodate two cables with a diameter of 5.8 to 8 mm, keeping them firm and protected. Furthermore, the modular system allows the clamp to be easily removed and repositioned, adapting the configuration or replacing it with another compatible model.
The SFT modular clamp not only ensures tidy cable management but also provides effective insulation from photovoltaic or metallic surfaces, improving installation safety and reliability.
Thanks to its modular design, strength and easy installation, it is particularly suitable for photovoltaic modules, electrical panels, telecommunications, industrial machinery, marine installations and control systems, where robust, organized and durable cable management is required.
Manufactured in stabilized Polyamide 66, it offers excellent heat and UV resistance, complies with UL94-V2 flammability classification, and withstands a temperature range of -40 °C to +105 °C. These properties guarantee reliable performance and long service life, even in outdoor installations such as photovoltaic plants.
Its square base allows easy fixing onto the corresponding stainless steel clips, orienting the cables perpendicular to the structure. Thanks to its tree-shaped design, it can accommodate two cables with a diameter of 5.8 to 8 mm, keeping them firm and protected. Furthermore, the modular system allows the clamp to be easily removed and repositioned, adapting the configuration or replacing it with another compatible model.
The SFT modular clamp not only ensures tidy cable management but also provides effective insulation from photovoltaic or metallic surfaces, improving installation safety and reliability.
Thanks to its modular design, strength and easy installation, it is particularly suitable for photovoltaic modules, electrical panels, telecommunications, industrial machinery, marine installations and control systems, where robust, organized and durable cable management is required.
