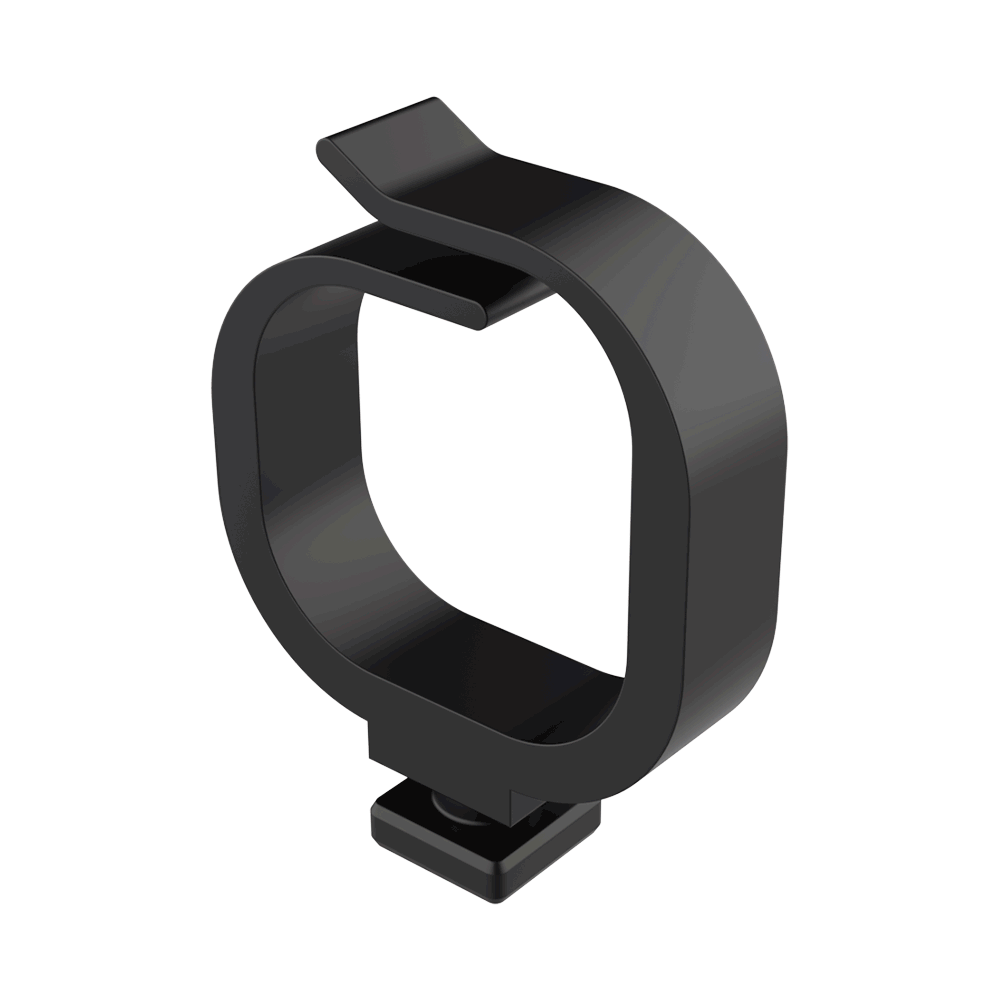

The SFP rectangular modular cable clamp is designed to be assembled with the SFK panel edge clips or the SFO structural profile clips, offering a flexible, safe and durable solution for the organization of single cables or bundles in industrial and renewable energy installations.
Manufactured in stabilized PA66, it offers excellent heat and UV resistance, making it especially suitable for outdoor applications such as photovoltaic solar plants, ensuring a long service life even under demanding environmental conditions. It complies with UL94-V2 flammability rating and withstands working temperatures from -40 °C to +105 °C.

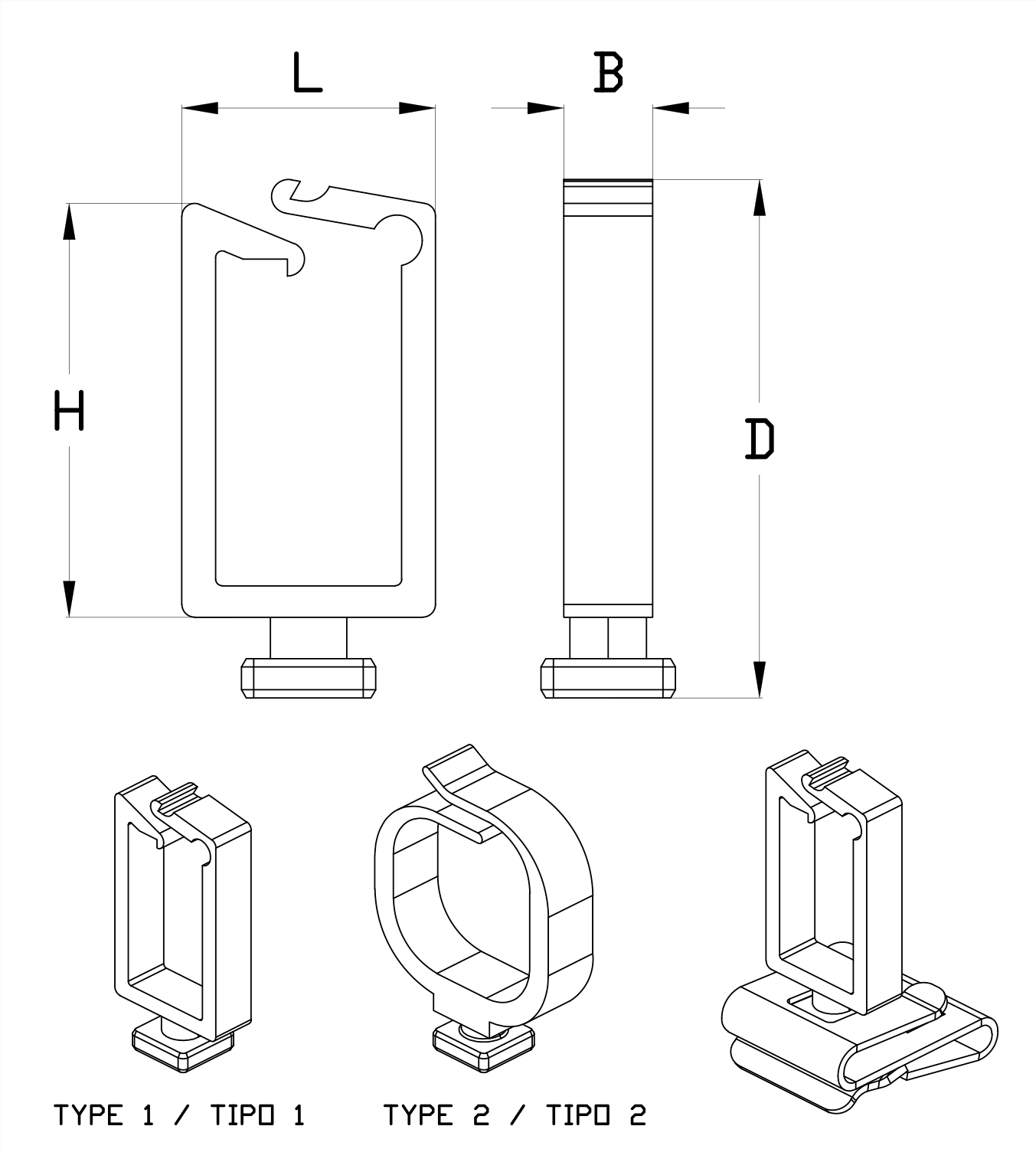

The rectangular base design allows easy fastening to the corresponding stainless-steel clip, with the option to orient the cables parallel or perpendicular to the structure. Thanks to its modular system, the cable clamp can be disassembled and repositioned easily to modify cable layout or be replaced with another compatible model. The upper tabs, except for reference 02012000331, can be closed to prevent cable movement and reopened if extensions or replacements are needed.
In addition to guiding and fastening, the SFP rectangular modular clamp provides insulation between cables and photovoltaic or metallic surfaces, enhancing installation safety.
Thanks to its modular design, strength and ease of assembly, it is the ideal solution for photovoltaic modules, electrical panels, telecommunications, industrial machinery, marine installations and control systems, where a robust, orderly and reliable cable management is required.
Manufactured in stabilized PA66, it offers excellent heat and UV resistance, making it especially suitable for outdoor applications such as photovoltaic solar plants, ensuring a long service life even under demanding environmental conditions. It complies with UL94-V2 flammability rating and withstands working temperatures from -40 °C to +105 °C.
The rectangular base design allows easy fastening to the corresponding stainless-steel clip, with the option to orient the cables parallel or perpendicular to the structure. Thanks to its modular system, the cable clamp can be disassembled and repositioned easily to modify cable layout or be replaced with another compatible model. The upper tabs, except for reference 02012000331, can be closed to prevent cable movement and reopened if extensions or replacements are needed.
In addition to guiding and fastening, the SFP rectangular modular clamp provides insulation between cables and photovoltaic or metallic surfaces, enhancing installation safety.
Thanks to its modular design, strength and ease of assembly, it is the ideal solution for photovoltaic modules, electrical panels, telecommunications, industrial machinery, marine installations and control systems, where a robust, orderly and reliable cable management is required.
