Our square ribbed tube insert has been designed for getting a good finishing part. It is also available for rectangular tubes: LFS.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube
Tube Thickness
D
H
d
L
d1



More
Info.
00300400131 20 x 20 1,50 20,00 5,00 15,00 12,00 19,00
00300400693 22 x 22 1,50 22,00 5,00 17,50 14,00 21,00
00300400132 25 x 25 1,50 25,00 5,00 20,00 13,50 24,50
00300400133 30 x 30 1,50 30,00 5,00 24,00 13,50 29,00
00300400134 35 x 35 1,50 35,00 5,00 27,80 14,50 34,00
00300400135 40 x 40 1,50 40,00 5,00 33,50 14,00 38,50
00300401146 50 x 50 1,00 to 2,00 50,50 5,00 45,00 19,50 49,50
00300400694 80 x 80 1,50 80,00 6,00 71,00 17,00 79,00

If you are interested in our family LES, you may be interested in these families as well:

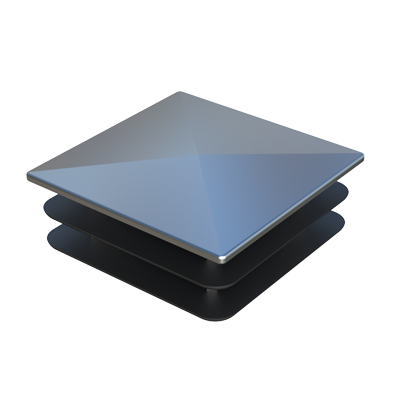

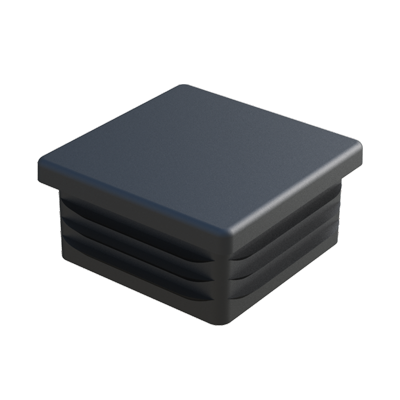

Our standard ribbed inserts for square tubes are made in LDPE (low density polyethylene) and are available for a wide range of measurements.   Our ribbed insert with steel base (NOT stainless) is for square tubes, but we also have it available for round tubes: TGLM, rectangular tubes: TGLMX and for oval tubes: TGLMO.   The round chrome inserts are manufactured in <b>ABS</b>, an ideal material for the chrome plating process to which this family of product is subjected to. The chrome plating offers a high quality finish imitating steel and they are supplied in <b>shiny chrome and matt chrome</b>.
<br>
If you desire this same piece in black ABS, have a look at our family <b><a href='https://www.isc-sl.com/square-tube-insert-abs/mtglp/' target ='_top'>MTGLP </a></b>.
